Private Windows and Android release • 3.11.0

Full View

Capture what happened. Control exceptions. Close the loop.

Full View turns the approved blast plan into a controlled field record across drilling, charging, stemming, equipment, inventory, approvals, evidence, and final results.

01Capture02Approve03Synchronise

Official application identity

The product goal

Make every operational record usable: captured at the source, protected offline, checked against the plan, approved when it varies, and synchronised for engineering reconciliation.

1-minute product demonstration

Capture field truth and make every exception visible.

A detailed module tour of field capture, approvals, inventory, equipment, shift control, offline synchronisation, reporting, and the benefit delivered to every operational role.

Captioned module tour | Features and user benefits | Playback controls included

Latest verified release

3.11.0

What is new now.

Full View 3.11.0 introduces an Operations Studio that organises field work into a consistent, role-aware workflow while keeping the active workspace and synchronisation state visible.

01
Live, Capture, Verify, Control, Report, Exchange, and System workspaces that match the operational decision path
02
A persistent active-workspace and synchronisation header for clearer control across long field sessions
03
Coordinated Windows and Android login with the signed-in user and sign-out action visible in the desktop rail
04
Restyled capture forms, KPI cards, metrics, and operational status surfaces for faster scanning and fewer missed exceptions
05
Responsive KPI layouts and the established tracker, identifier repair, immediate sync, and recovery controls carried into the new studio

Inside the software

Built around the work, not around generic dashboards.

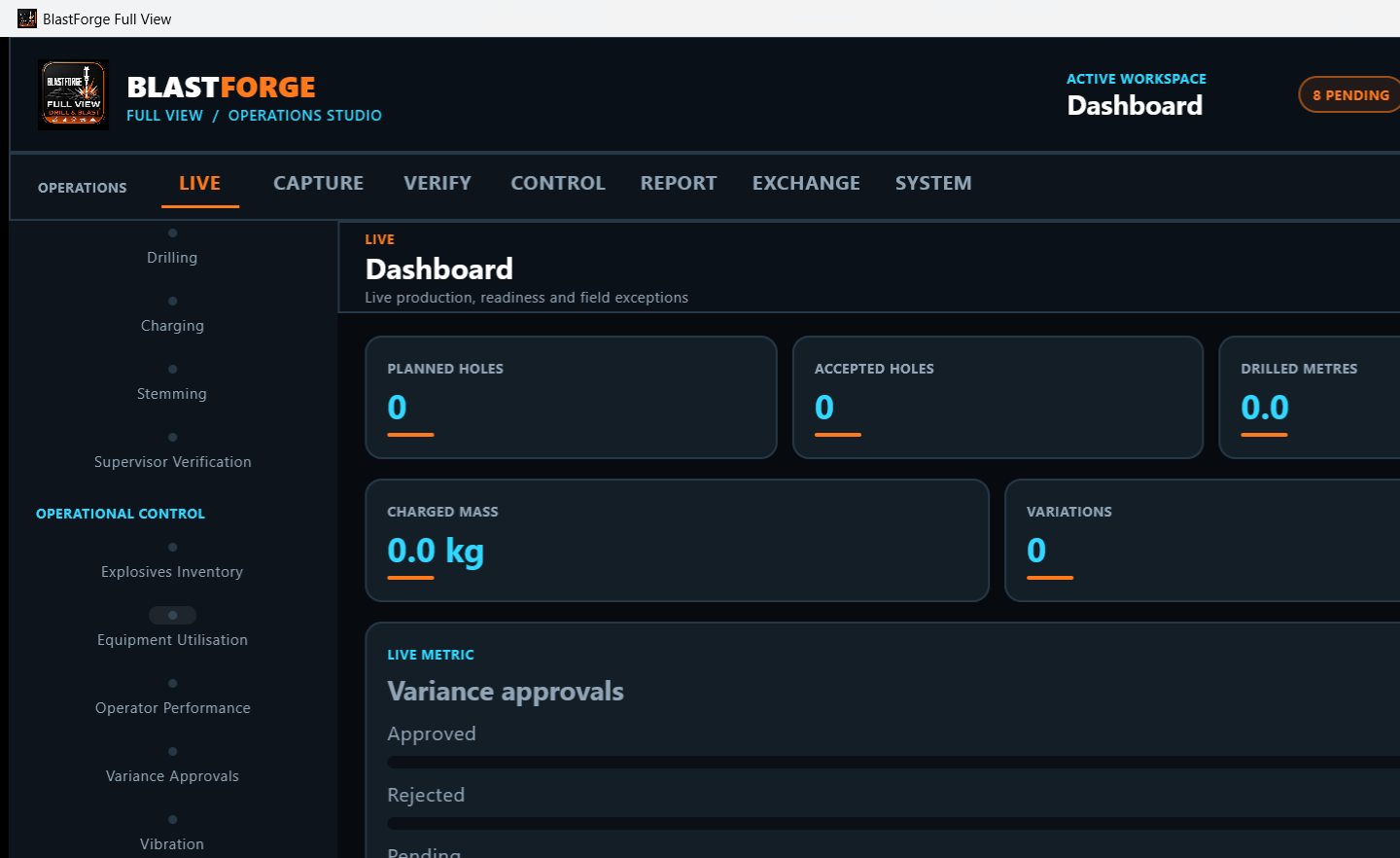

Full View 3.11.0 Operations Studio dashboard — 01The Operations Studio organises live work, capture, verification, control, reporting, exchange, and system tasks

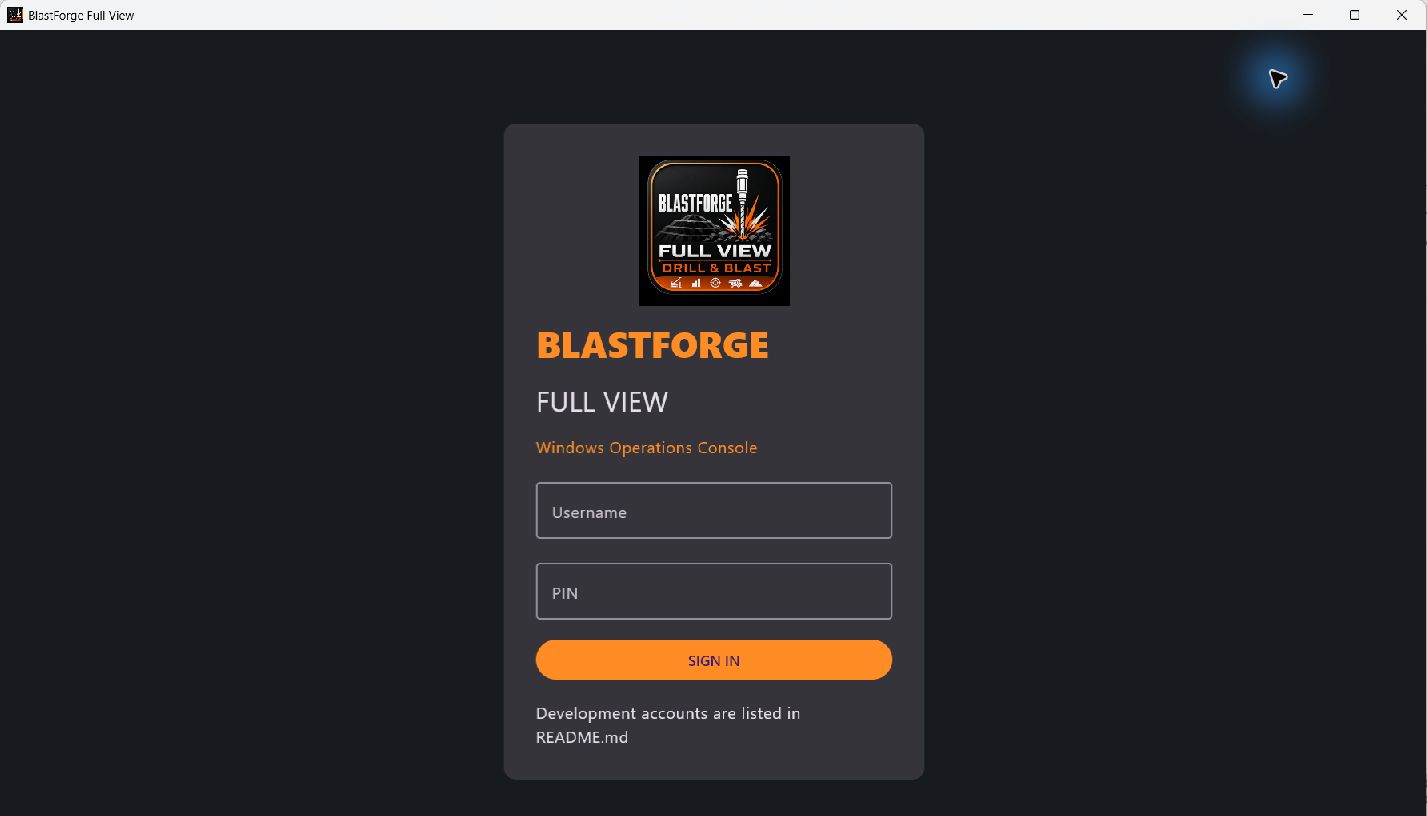

Full View Windows operations console — 02The private Windows operations console uses the same field workflow as the Android tablet build

Complete capability map

One product, three connected responsibilities.

Field capture

Record the work where it happens, even when the network does not.

Offline-first Android tablet and Windows desktop applications
Role-based screens for operators, truck operators, blasters, supervisors, foremen, engineers, and production managers
Drilling capture for drill, status, material, depth, hole-through, abandoned, redrill, GPS, and comments
Charging capture for cut, sector, planned and actual depth, product, mass, decks, primers, and temperature
Stemming capture for planned and actual length, material, operator, status, and quality
Explosives inventory, vibration, airblast, final fragmentation, and blast-result recording
Live day- and night-shift workflow with start/stop state changes, actual availability, operating time, delays, breakdowns, and utilisation

Evidence and control

Make variances, approvals, equipment states, and evidence visible instead of informal.

Verified Blast Forge package import with checksum, schema, duplicate, and row-level validation
Separate planned and measured records with automatic prefill by blast and hole identity
Depth and charge-variance flags with independent foreman and manager decisions
Mandatory photo evidence for new drilling records and supervisor verification
Live equipment event logging for operating, operational delay, mechanical, and electrical states
Seventy-three standard stoppage codes, restart-safe active events, elapsed time, and event-hour totals
Engineer-only equipment master for adding, renaming, typing, activating, and deactivating drills, explosive trucks, and support equipment
User administration for seven operational roles, account activation, and secure PIN reset using synchronised salted hashes

Synchronise and report

Keep field, desktop, central records, and engineering aligned without losing offline resilience.

Cross-platform Windows and Android synchronisation through a private laptop-hosted service
Locally queued changes, stable record identities, duplicate protection, append-only change history, and immediate post-capture sync
Optional SQL Server central record with device cursors and audited sync batches
Dashboards for drilling status, workflow, drill hours, material penetration, inventory, vibration, and equipment
Blast and cut tracking on Windows and Android, identifier repair, import audit history, CSV export, and evidence references
Current and legacy Blast Forge package compatibility across schema versions 1 to 3 with SHA-256 verification
Local sync-service auto-start, restart-on-failure scheduling, and actionable connection diagnostics
Structured actuals returned to Blast Forge for hole-by-hole reconciliation and reporting

Where it earns its place

Designed for real decisions and accountable handovers.

01Operators and blasters

Shift capture

Record drilling, charging, stemming, machine states, and evidence directly at the operation.

02Foremen and managers

Exception control

See plan variances immediately and preserve separate approval decisions with the record.

03Engineering

Plan reconciliation

Return measured execution and blast results to the original Blast Forge design.

Deployment and requirements

Ready for the operation you have today.

Current private packages include Windows installers and an Android development build. Production deployment will require hardened identity, HTTPS, managed credentials, backups, and signed releases.

Current platforms: Windows desktop and Android tablet 8.0 or newer
Offline operation: Local capture continues safely without network access
Optional synchronisation: Private Wi-Fi, a Windows host, and SQL Server for the central record
Field hardware: Camera access for photo evidence; tablet GPS where required

Member release access

Public product information. Protected software releases.

Product pages are public, while software packages remain protected. Members sign in with ChatGPT, receive owner approval, and complete a separate release-password check before the catalogue or package links become available.
